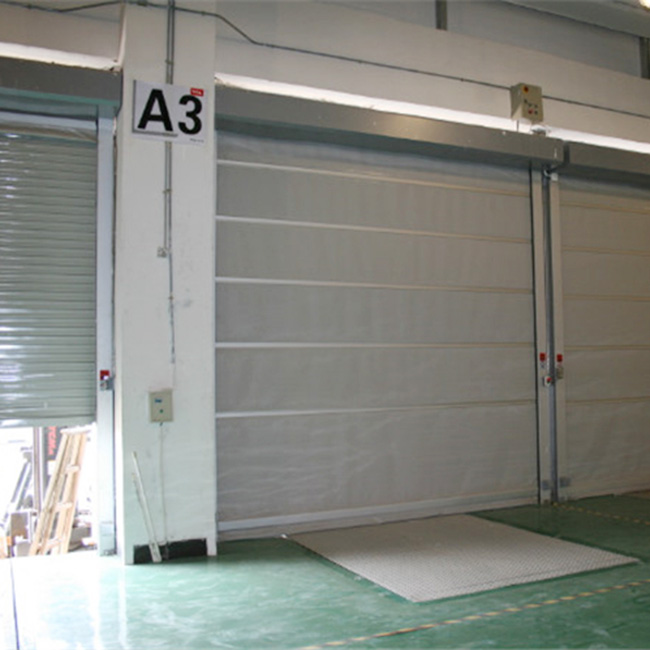

White / grey Roll-up Door
PVC Roll-up Door, with a speed of more than 0.6 meters per second, is a fast lift barrier-free isolation type. The main function is to ensure workshops dust-free. It is thermal insulated, insect-proof, wind-proof, dustproof, soundproofing, fire-retardant and odor-proof.
- Product details
Product parameters
The energy-saving features of the fast rolling door:
1. Speed opening and energy saving
All fast rolling doors have an opening speed of 1500-2000mm / s. High technology is used in the production field to ensure that energy will be saved quickly. Doors (with thermal insulation, dust and noise reduction, taste isolation requirements, etc.). It can ensure good working environment, sanitation and material flow, and reduce the loss as much as possible.
2. Convenient, fast, safe and reliable
high-frequency opening (1000-1500 times / day), high stability, reliable quality; good wind resistance, strong impact resistance, can withstand wind speeds equivalent to five to six levels; so fast shutter doors Both are equipped with an infrared sensor device at the bottom, and an airbag at the bottom of the roller shutter door. The bottom of the door is equipped with an anti-collision device. A slight collision with an object will also stop the door and raise it in reverse, complying with European national safety standards.
3. Affordable and easy to maintain
The rapid rolling door developed by our company is beautiful in appearance, generous and durable. The external structure includes stainless steel, steel plate paint, etc. The internal configuration is available in various styles and prices including domestic configuration and imported configuration. The design is reasonable, the curtain does not accumulate dust, the curtain can be removed and replaced, and it is easy to clean, which meets the CMP requirements.
4. Various opening function options The
main control system includes: Standard configuration: radar induction.
Button control. Optional: Geomagnetic ring control, rope control, card swipe, access control networking, multi-door interlock, anti-collision column, alarm, etc.
1. Speed opening and energy saving
All fast rolling doors have an opening speed of 1500-2000mm / s. High technology is used in the production field to ensure that energy will be saved quickly. Doors (with thermal insulation, dust and noise reduction, taste isolation requirements, etc.). It can ensure good working environment, sanitation and material flow, and reduce the loss as much as possible.
2. Convenient, fast, safe and reliable
high-frequency opening (1000-1500 times / day), high stability, reliable quality; good wind resistance, strong impact resistance, can withstand wind speeds equivalent to five to six levels; so fast shutter doors Both are equipped with an infrared sensor device at the bottom, and an airbag at the bottom of the roller shutter door. The bottom of the door is equipped with an anti-collision device. A slight collision with an object will also stop the door and raise it in reverse, complying with European national safety standards.
3. Affordable and easy to maintain
The rapid rolling door developed by our company is beautiful in appearance, generous and durable. The external structure includes stainless steel, steel plate paint, etc. The internal configuration is available in various styles and prices including domestic configuration and imported configuration. The design is reasonable, the curtain does not accumulate dust, the curtain can be removed and replaced, and it is easy to clean, which meets the CMP requirements.
4. Various opening function options The
main control system includes: Standard configuration: radar induction.
Button control. Optional: Geomagnetic ring control, rope control, card swipe, access control networking, multi-door interlock, anti-collision column, alarm, etc.
| Curtain size | The maximum specifications produced by domestic manufacturers can achieve the opening and closing speed of W7 * H14m : 0.6-2.0 m / s Door surface material: the door leaf is cold-rolled steel or aluminum alloy profiles with a thickness of 2.0mm-2.5mm. |
| Curtain material | 1. High-density industrial base fabric Origin: France Thickness: 0.8mm-2.0mm; Technical Parameters: Tensile Strength (Warp / Weft): 5700/5100 N / 5cm; Tear Strength (Warp / Weft): 900/80 N ; Use temperature: -30 ℃ ～ + 70 ℃; Fire protection level: French standard NF-P92-503 M2 or German standard DIN 4102 B1 2. Thickness of fully transparent PVC film: 1.3mm-2.0mm 3. Control system: high-tech PLC and inverter control, as well as microcontroller control. |
| Fabric color | There are a variety of colors to choose from, such as: yellow, gray, blue, dark blue, orange or transparent. The perspective window can be rectangular or oval, which increases safety and convenient management. |
| Technical Parameters | Safety performance ------- orange photoelectric flash, when the door is opened or closed, the red light flashes to show a warning, when the power is off, a manual remote lever is attached to gently open and close; more safety and convenience. Sealing performance ----- The bottom end is equipped with elastic PVC base cloth, which can be closely combined with various uneven floors up to the ten thousand standard, and there are sealing brushes or rubber seals on both sides of the door post Reduce noise and increase sealing effect. Use and control-button, pull rope, remote control, automatic geomagnetism, radar, photoelectricity, linkage interlock, induction |
Features
Powerful sealing performance
against level 10 typhoon
High frequency opening (1000-1500 times / day), high stability, windproof ribs are installed at the connection part of the curtain to increase the windproof effect.
Exquisite workmanship and
easy maintenance
Beautiful appearance and durable. The external structure includes stainless steel, steel plate paint, etc. The internal configuration is available in various styles and prices including domestic configuration and imported
Servo motor is
durable for 10 years
Selected servo motors, small size, light weight, large power, fast speed, frequent switching without restrictions, smooth operation. Low noise and high safety performance.
